Kia Soul EV: Steering wheel / Heated Steering wheel Schematic Diagrams

Kia Soul EV (PS EV) 2015-2020 Service Manual / Steering System / Steering wheel / Heated Steering wheel Schematic Diagrams

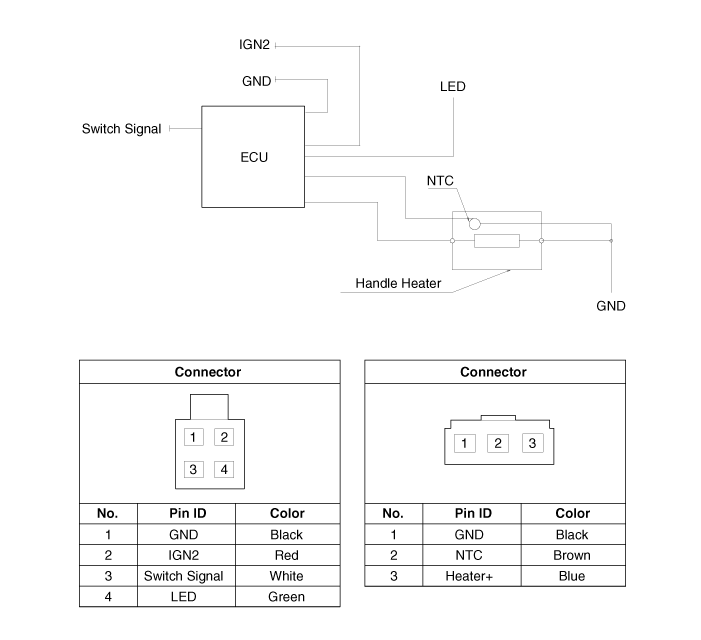

System Circuit Diagram

Heated Steering wheel Description and Operation
Description When manually selected, the heated steering wheel system improves the thermal comfort of the driver by heating the steering wheel. 1. Heate control unit 2. Heated pad Specifi ...

Heated Steering wheel Repair procedures
Inspection 1. Measure a resistance of NTC and Heated pad. – NTC resistance(Yellow / Black) - 10k? (9k? ~ 11k?), 25°C – Heated pad resistance (Yellow , Black) - 1.73? ( 2.1 ...
