Kia Soul EV: High Voltage Distributing System / High voltage joint box Description and Operation

Kia Soul EV (PS EV) 2015-2020 Service Manual / EV Battery System / High Voltage Distributing System / High voltage joint box Description and Operation

Description
Function: The high voltage joint box distribute high voltage to the each unit of vehicle.

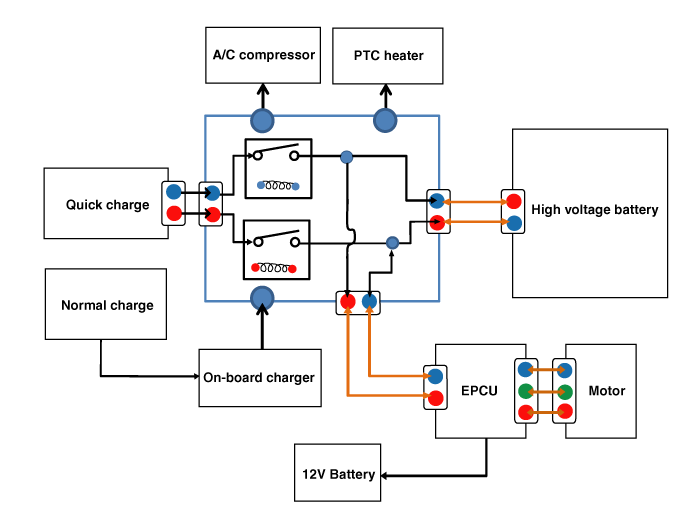

High-voltage power charge / output system flow

High voltage joint box Components and Components Location
Components Location 1. High voltage joint box2. Air conditioning compressor high voltage connector3. Electric power control unit (EPCU) high voltage cable4. On-board charger (OBC) high voltage ca ...

High voltage joint box Repair procedures
Removal     • Be sure to read and follow the “General Safety Information and Caution” before doing any work related with the high voltage system. Failure t ...
