Kia Soul EV: High Voltage Distributing System / High voltage joint box Components and Components Location

Kia Soul EV (PS EV) 2015-2020 Service Manual / EV Battery System / High Voltage Distributing System / High voltage joint box Components and Components Location

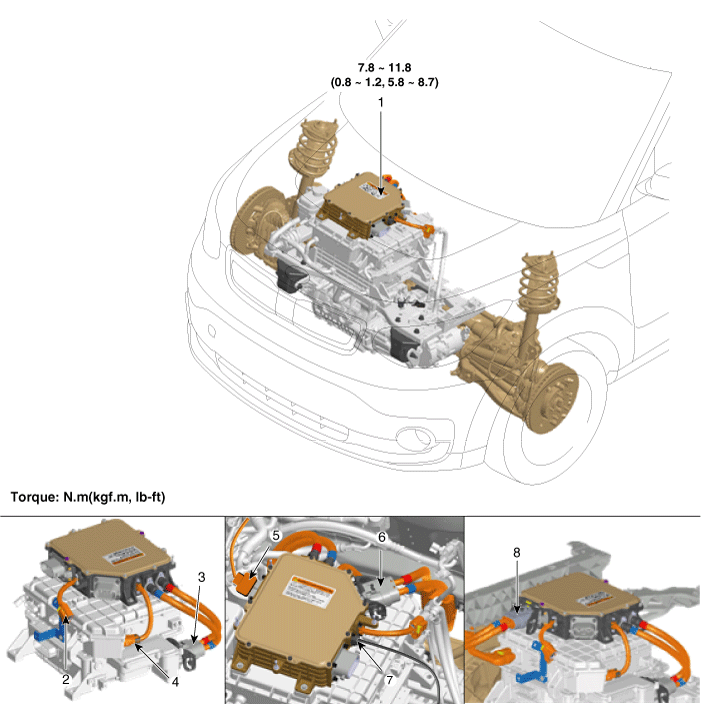

Components Location

1. High voltage joint box
2. Air conditioning compressor high voltage connector
3. Electric power control unit (EPCU) high voltage cable
4. On-board charger (OBC) high voltage cable connector
5. PTC heater high voltage cable
6. High voltage battery assembly high voltage cable
7. High voltage joint box connector
8. Quick charge high voltage cable

High Voltage Distributing System
...

High voltage joint box Description and Operation
Description Function: The high voltage joint box distribute high voltage to the each unit of vehicle. High-voltage power charge / output system flow ...
