Kia Soul EV: High Voltage Battery Control System / High Voltage Battery Heater Relay Components and Components Location

Kia Soul EV (PS EV) 2015-2020 Service Manual / EV Battery System / High Voltage Battery Control System / High Voltage Battery Heater Relay Components and Components Location

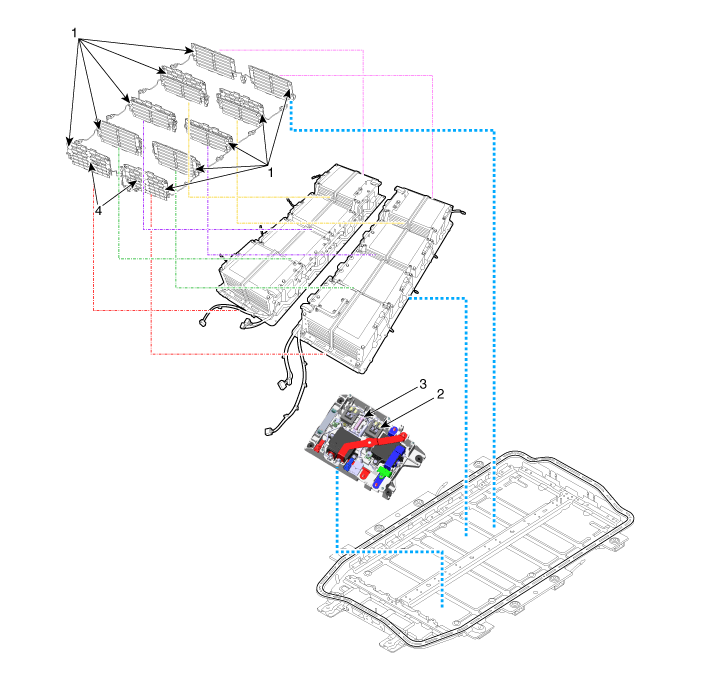

Component

1. Battery Heater
2. Battery Heater Relay
3. Battery Heater Fuse
4. Battery Heater Temperature Sensor

High Voltage Battery Heater Relay Specifications
Specification ItemSpecificationONRated Voltage (V)450Rated Current (A)10Voltage Drop (V)Less than 0.5 (200A)CoilOperation Voltage (V)12Resistance (?)104.4 ~ 127.6 (20°C) ItemSpecification ...

High Voltage Battery Heater Relay Description and Operation
Description High Voltage Battery Heater Relay is installed in the Power Relay Assembly (PRA). It supplies high voltage flow inside the heater to operate the heater to warm the high voltage battery ...
