Kia Soul EV: High Voltage Battery Control System / Battery Current Sensor Schematic Diagrams

Kia Soul EV (PS EV) 2015-2020 Service Manual / EV Battery System / High Voltage Battery Control System / Battery Current Sensor Schematic Diagrams

Systerm Circuit Diagram

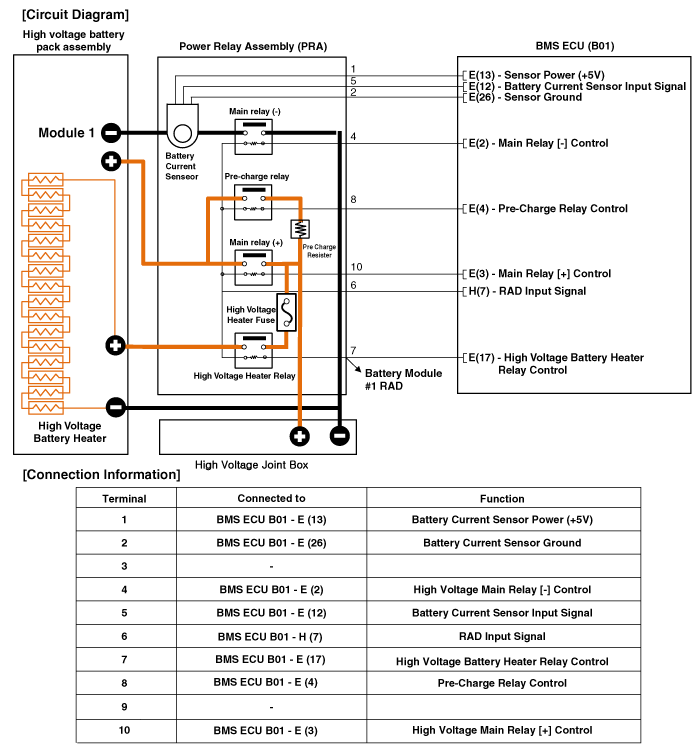

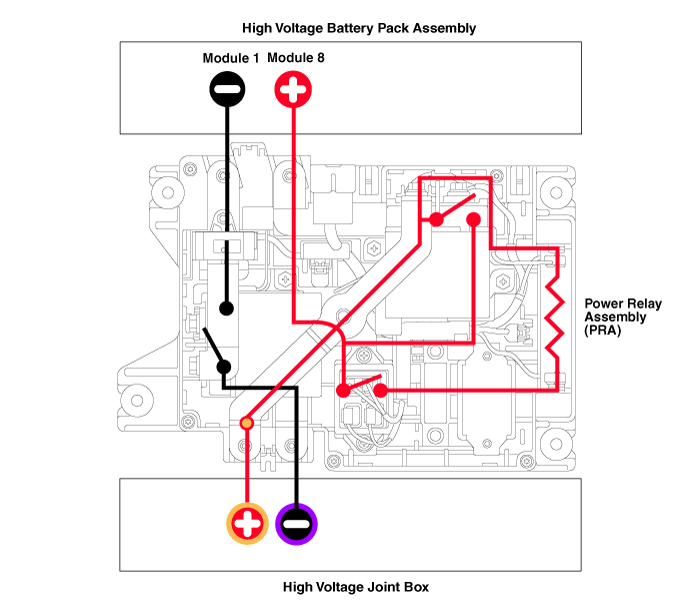

With High Voltage Battery Heater System

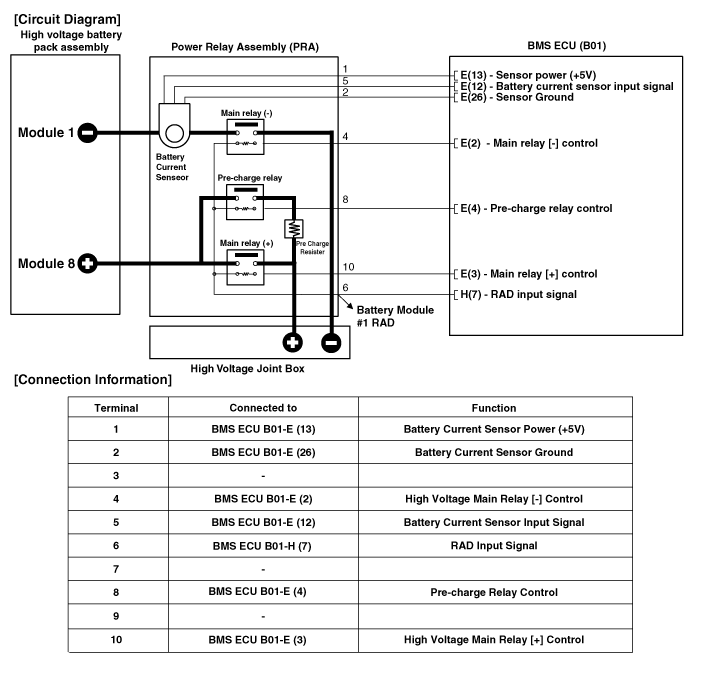

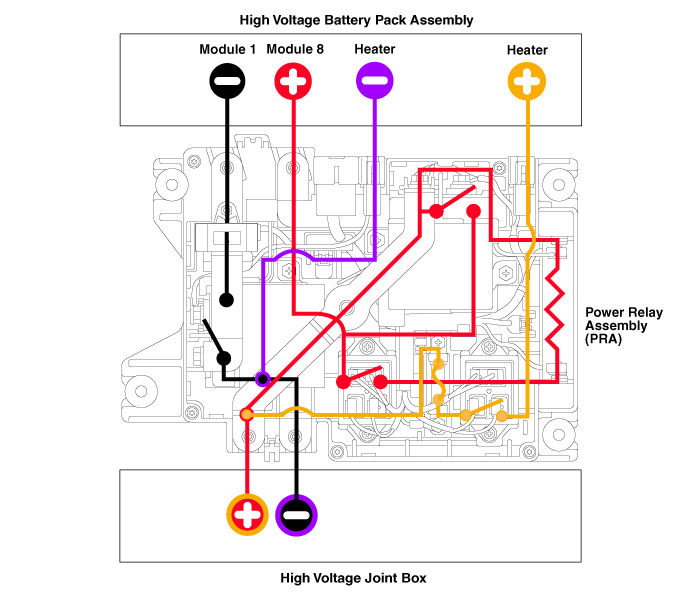

Without High Voltage Battery Heater System

Circuit Diagram
Without High Voltage Battery Heater System

With High Voltage Battery Heater System

Battery Current Sensor Description and Operation
Description Battery Current Sensor is installed in the Power Relay Assembly and it measures the current when the high voltage battery is being charged or discharged. [With High Voltage Batte ...

Battery Current Sensor Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Shut off the high voltage. (Refer to Battery Control System - "High Voltage Shut-off Prcedure") 3. Remove the high voltage battery system as ...
