1.
Remove the rear door module.
(Refer to Rear Door - "Rear Door Module")
2.

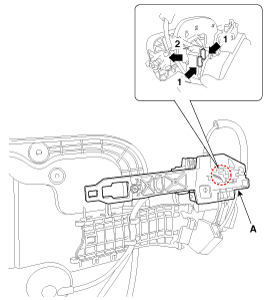

Remove the rear door outside handle base (A) by pushing in the lock pins located in the back.

3.
Remove the rear door outside handle cable (A).

4.
Disconnect the rear door latch connector (A).
5.
Remove the rear door latch assembly (B) by pulling it in the direction of the arrow.

6.
Remove the rear door inside handle cage (A).

7.
Remove the rear door inside handle cable (A) by pushing it backward.

8.
Install in the reverse order of removal.

Make sure that the connectors are connected properly.
Make sure that the door locks/unlocks and opens/closes properly.
Replace any damaged clips.
