Kia Soul EV: High Voltage Battery Control System / High Voltage Battery Heater Schematic Diagrams

Kia Soul EV (PS EV) 2015-2020 Service Manual / EV Battery System / High Voltage Battery Control System / High Voltage Battery Heater Schematic Diagrams

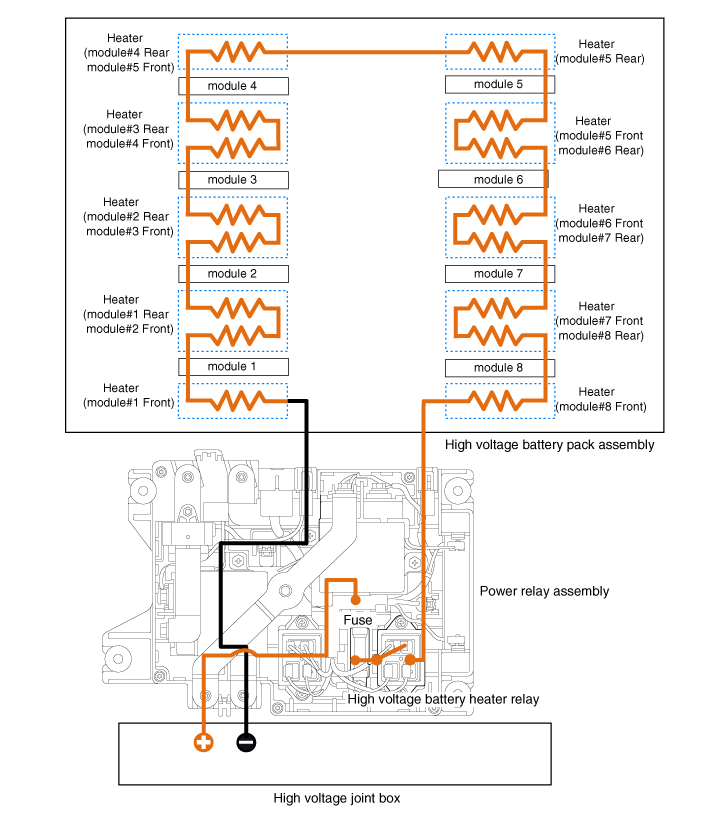

System Circuit Diagram

High Voltage Battery Heater Description and Operation
Description High Voltage Battery Heater is installed in every module and it is controlled by heater relay. High Voltage Flow Control FlowOperation ...

High Voltage Battery Heater Repair procedures
Inspection     When removing the battery pack assembly to inspect the battery system, it can be connected to vehicle by using the SST 0K918-E4100, 0K375-E4100, 0K375-E4 ...
