Kia Soul EV: High Voltage Battery Control System / High Voltage Battery Heater Description and Operation

Kia Soul EV (PS EV) 2015-2020 Service Manual / EV Battery System / High Voltage Battery Control System / High Voltage Battery Heater Description and Operation

Description
High Voltage Battery Heater is installed in every module and it is controlled by heater relay.

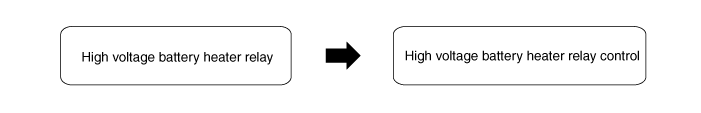

High Voltage Flow

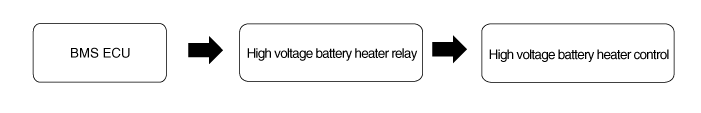

Control Flow

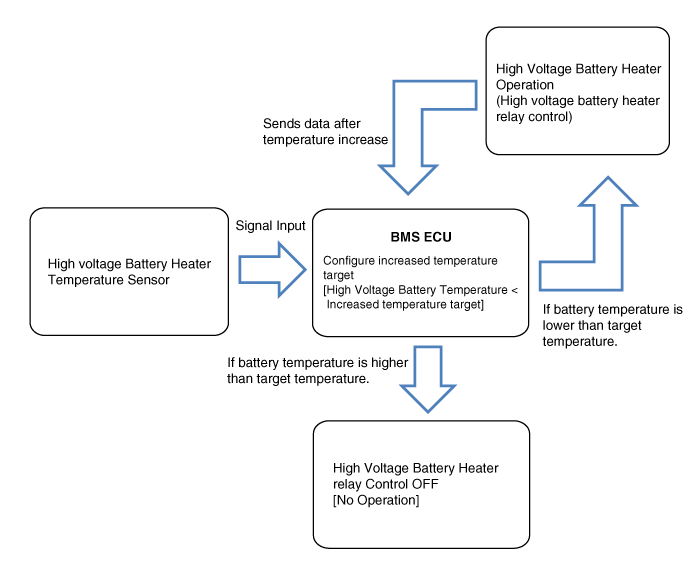

Operation

High Voltage Battery Heater Components and Components Location
Component 1. High Voltage Battery Heater2. High Voltage Battery Heater Relay3. High Voltage Battery Heater Fuse4. High Voltage Battery Heater Temperature Sensor ...

High Voltage Battery Heater Schematic Diagrams
System Circuit Diagram ...
