Kia Soul EV: High Voltage Battery Control System / High Voltage Battery Heater Fuse Schematic Diagrams

Kia Soul EV (PS EV) 2015-2020 Service Manual / EV Battery System / High Voltage Battery Control System / High Voltage Battery Heater Fuse Schematic Diagrams

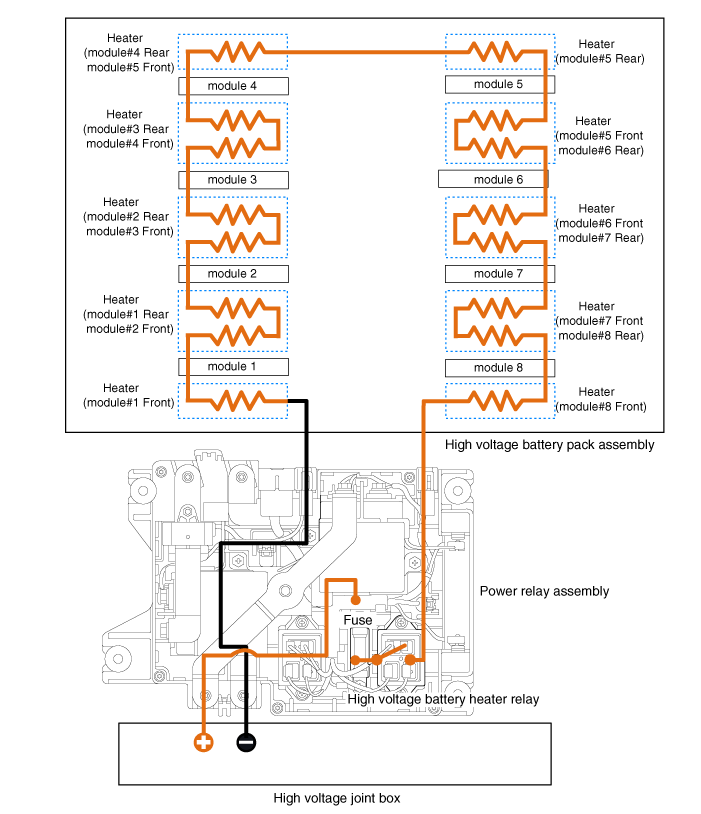

System Circuit Diagram

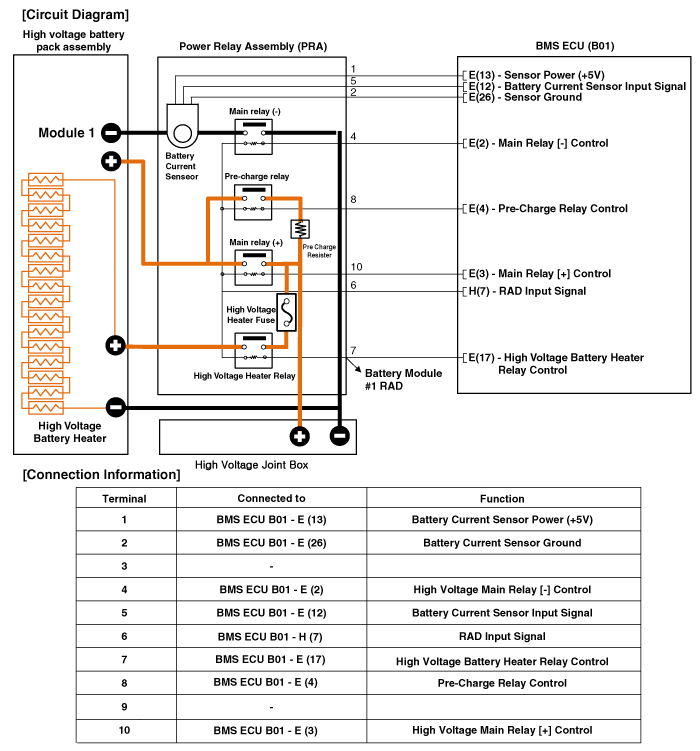

Circuit Diagram

High Voltage Battery Heater Fuse Description and Operation
High Voltage Battery Heater Fuse It is connected to battery heater relay switch and it cuts off the circuit in case of overcurrent. It is installed in the Power Relay Assembly (PRA).Operation ...

High Voltage Battery Heater Fuse Repair procedures
Removal     Main Relay, Pre Charge Relay, Pre Charge Resistor, Battery Current Sensor, High Voltage Battery Heater Relay and the High Voltage Battery Heater Fuse are in ...
