Kia Soul EV: High Voltage Battery Control System / High Voltage Battery Heater Components and Components Location

Kia Soul EV (PS EV) 2015-2020 Service Manual / EV Battery System / High Voltage Battery Control System / High Voltage Battery Heater Components and Components Location

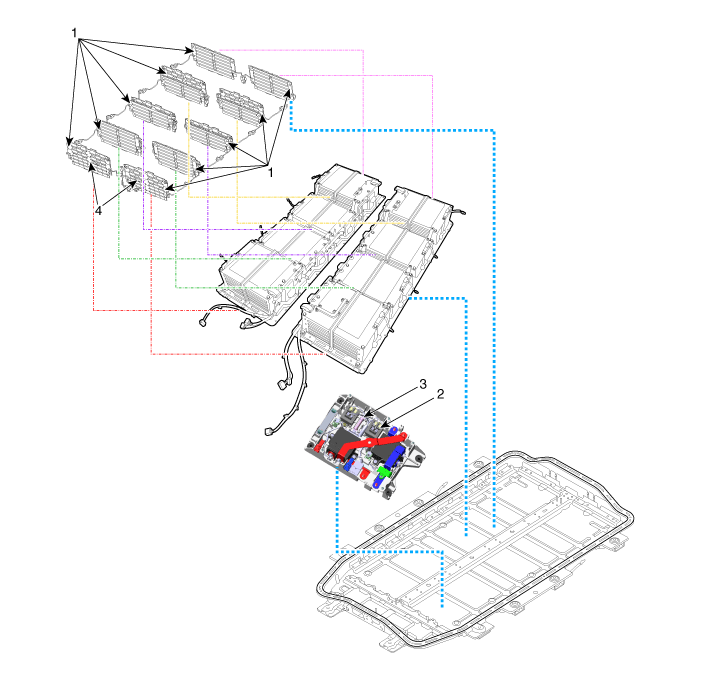

Component

1. High Voltage Battery Heater
2. High Voltage Battery Heater Relay
3. High Voltage Battery Heater Fuse
4. High Voltage Battery Heater Temperature Sensor

High Voltage Battery Heater Specifications
Specification [14 cells LH/ RH] ItemSpecificationResistance (?)26 ~ 29 [10 cells LH/ RH] ItemSpecificationResistance (?)16 ~ 18 ...

High Voltage Battery Heater Description and Operation
Description High Voltage Battery Heater is installed in every module and it is controlled by heater relay. High Voltage Flow Control FlowOperation ...
