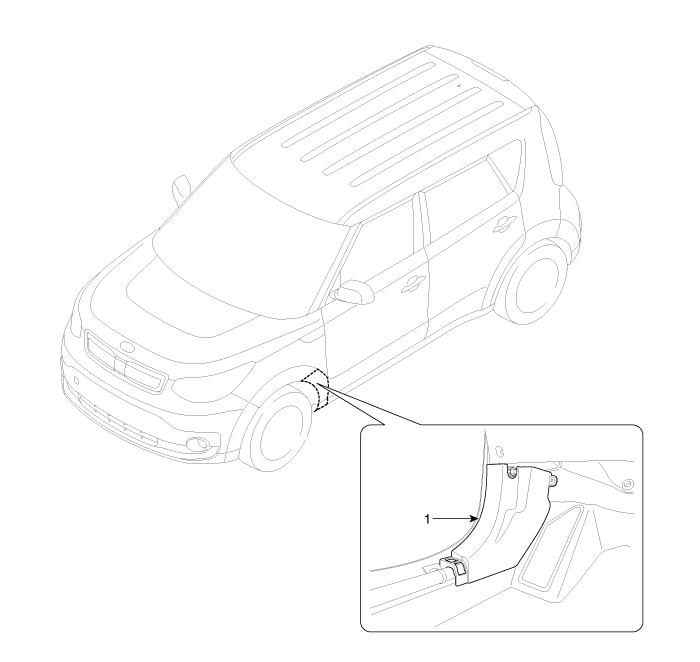

Kia Soul EV: Interior Trim / Cowl Side Trim Components and Components Location

Door Scuff Trim Repair procedures

Replacement     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver, wrap it with protec ...

Cowl Side Trim Repair procedures

Replacement     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver, wrap it with protec ...

Other information:

Kia Soul EV (PS EV) 2015-2020 Service Manual: Power Relay Assembly (PRA) Description and Operation

Description Power relay assembly (PRA) is installed in the high voltage battery system assembly and it consists of main relays which control the high voltage, pre-charge relay, pre-charge resister and battery current sensor. PRA controls high voltage of 360V between the high voltage batte ...

Kia Soul EV (PS EV) 2015-2020 Service Manual: ON-Board Charger (OBC) Schematic Diagrams

Schematic Diagrams Input Connector (AC) TerminalDescriptionSpecificationCurrent (normal)Voltage (maximum)1Phase voltage (L1)_220VAC33A310VAC2Ground3Phase voltage (L2)_220VAC Output Connector (DC) TerminalDescriptionSpecificationCurrent (normal)Voltage (maximum)1High Voltage Battery (-)25 ...
