Replacement

Put on gloves to protect your hands.

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Be careful not to scratch the door trim and other parts.
1.

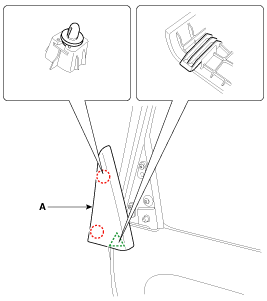

Using a screwdriver or remover, remove the rear door delta inner cover (A).

2.
Using a flat-tip screwdriver (A), remove the rear door inside handle cap (B).

3.
After loosening the mounting screws, remove the rear door trim (A) using a flat-tip screwdriver (B).

4.
Remove the rear door inside handle cage (A).

5.
Disconnect the power window switch connector (A).

6.
Install in the reverse order of removal.

Make sure that the connectors are connected properly.
Make sure that the door locks/unlocks and opens/closes properly.
Replace any damaged clips.
