Kia Soul EV: High Voltage Battery Control System / High Voltage Battery Heater Temperature Sensor Schematic Diagrams

Kia Soul EV (PS EV) 2015-2020 Service Manual / EV Battery System / High Voltage Battery Control System / High Voltage Battery Heater Temperature Sensor Schematic Diagrams

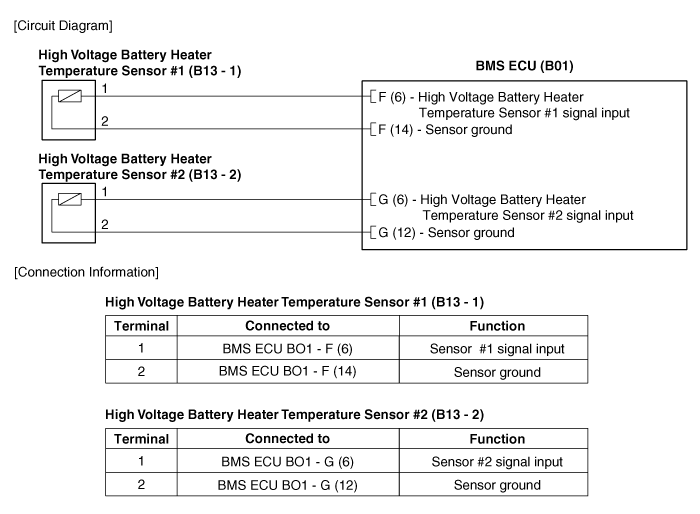

Circuit Diagram

High Voltage Battery Heater Temperature Sensor Description and Operation
Description It senses the temperature to determine if the battery heater is operating well according to conditions. ...

High Voltage Battery Heater Temperature Sensor Repair procedures
Inspection     High voltage battery heater temperature sensor is installed in modules No. 1 and No. 8. 1. Turn the ignition switch OFF. 2. Shut off the high voltage ...
