Kia Soul EV: High Voltage Battery Control System / High Voltage Battery Heater Relay Schematic Diagrams

Kia Soul EV (PS EV) 2015-2020 Service Manual / EV Battery System / High Voltage Battery Control System / High Voltage Battery Heater Relay Schematic Diagrams

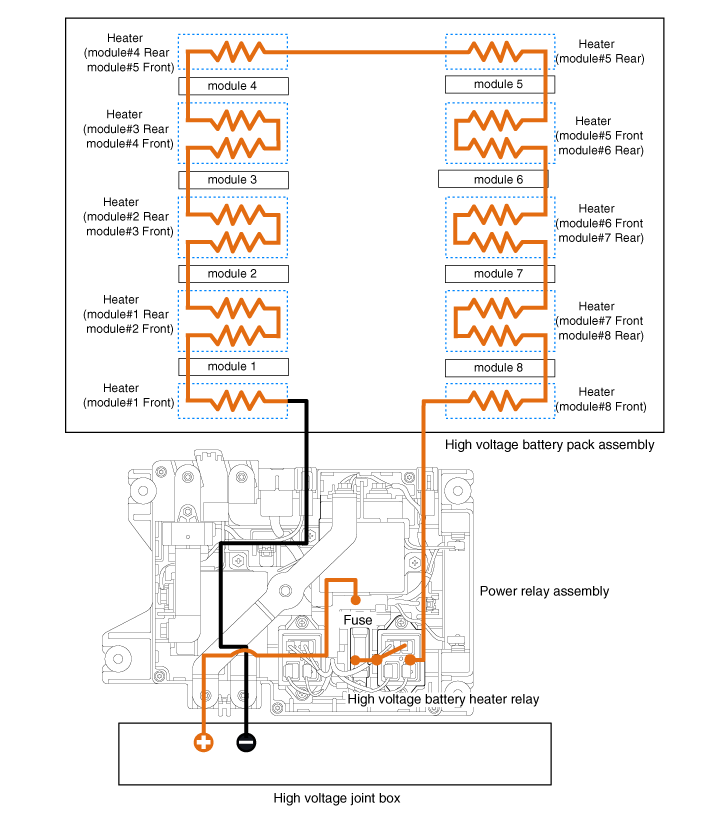

System Circuit Diagram

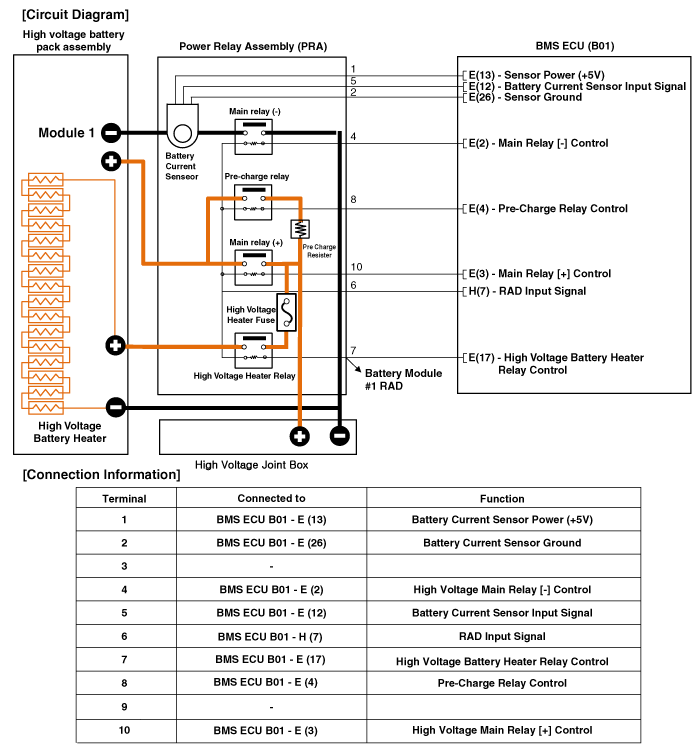

Circuit Diagram

High Voltage Battery Heater Relay Description and Operation
Description High Voltage Battery Heater Relay is installed in the Power Relay Assembly (PRA). It supplies high voltage flow inside the heater to operate the heater to warm the high voltage battery ...

High Voltage Battery Heater Relay Repair procedures
Inspection     • Be sure to read and follow the “General Safety Information and Caution” before doing any work related with the high voltage system. Failur ...
