Kia Soul EV: High Voltage Battery Control System / High Voltage Battery Heater Fuse Components and Components Location

Kia Soul EV (PS EV) 2015-2020 Service Manual / EV Battery System / High Voltage Battery Control System / High Voltage Battery Heater Fuse Components and Components Location

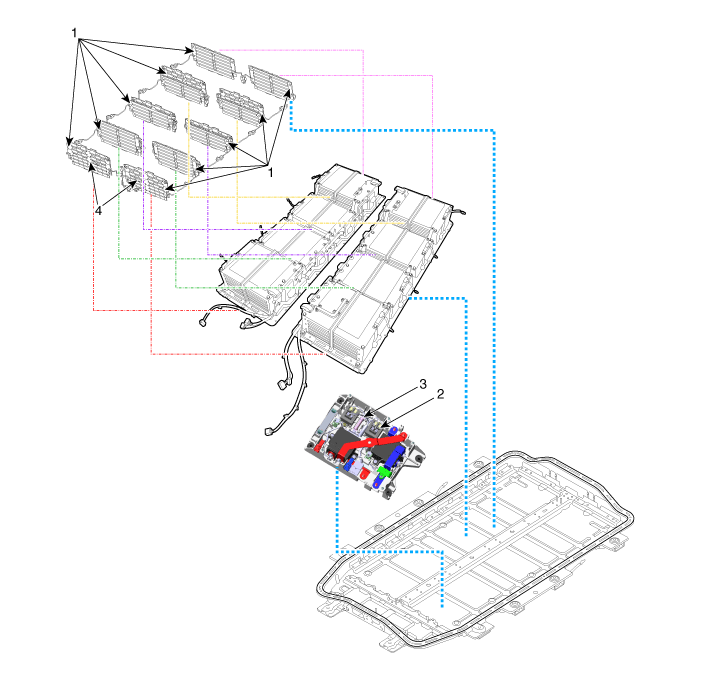

Component

1. High Voltage Battery Heater
2. High Voltage Battery Heater Relay
3. High Voltage Battery Heater Fuse
4. High Voltage Battery Heater Temperature Sensor

High Voltage Battery Heater Fuse Specifications
Specification ItemSpecificationCurrent (A)10 ...

High Voltage Battery Heater Fuse Description and Operation
High Voltage Battery Heater Fuse It is connected to battery heater relay switch and it cuts off the circuit in case of overcurrent. It is installed in the Power Relay Assembly (PRA).Operation ...
