Kia Soul EV: Interior Trim / Components and Components Location

Kia Soul EV (PS EV) 2015-2020 Service Manual / Body (Interior and Exterior) / Interior Trim / Components and Components Location

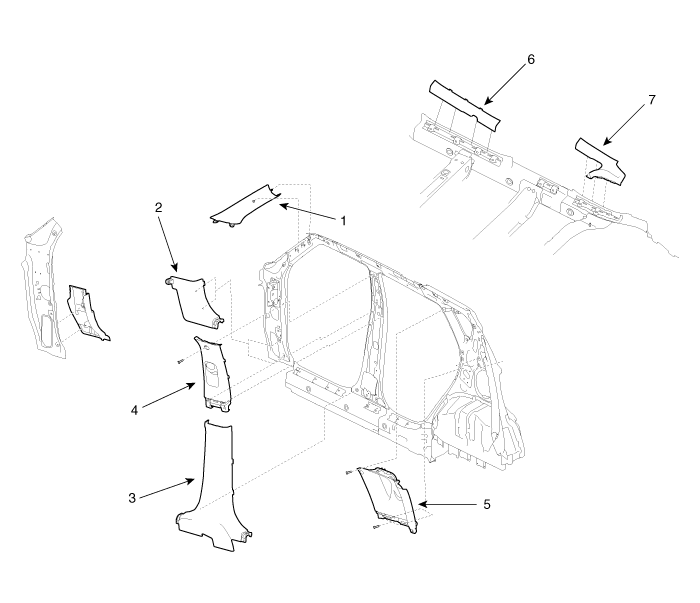

Components

1. Front pillar trim
2. Cowl side trim
3. Center pillar lower trim
4. Center pillar upper trim

5. Rear pillar trim
6. Front door scuff trim
7. Rear door scuff trim

Interior Trim

...

Door Scuff Trim Components and Components Location

Component Location 1. Front door scuff trim2. Rear door scuff trim ...
