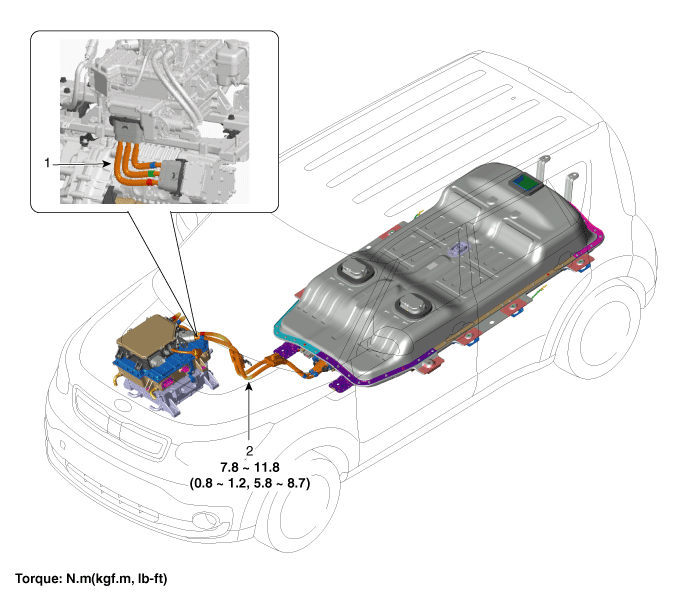

Components Location

1. 3-phase high voltage cable [MCU - Motor]
2. High voltage cable [High voltage battery - High voltage joint box]
