Kia Soul EV: BCM (Body Control Module) / Description and Operation

Kia Soul EV (PS EV) 2015-2020 Service Manual / Body Electrical System / BCM (Body Control Module) / Description and Operation

Description

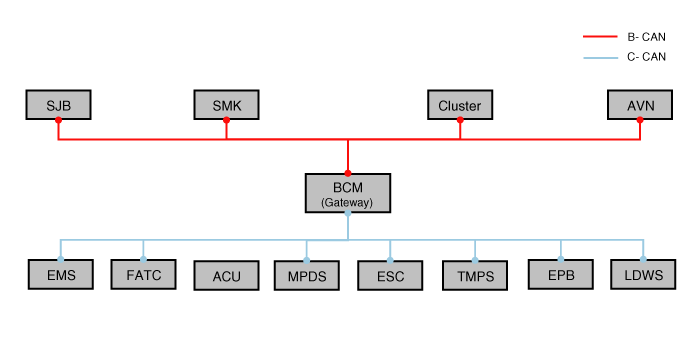

BCM CAN Communication

Function
Function
Description
Timer
Defroster
When IGN ON, Rear Heater Control Function
Safety Power Window
According to the position of key, Power Window Output Control
Tailgate
Tailgate Open and Open Prohibition Control Function
Panic Alarm
Using the RKE My Vehicle Searching Function
Driving
ATM Solenoid
Shift Lever Automatic Release Protection Control Function
Interior Lamp
Room Lamp
Room Lamp Control Function
Exterior Lamp
Tail Lamp
Interior Illumination Control and Tail Lamp Control Function
H/Lamp Low & High
Head Lamp Low/High/Passing Control Function
Front Fog Lamp
Front Fog Lamp Control Function
AV Tail
Autolight Interlock Illumination Control Fucntion
DRL
When the Key turns IGN ON in the daytime. Dedicated DRL Illumination Control Function
Wiper Washer
Wiper Low/High
Front Wiper Low/High Control Function
Wiper MIST
Front Wiper MIST Control Function
Wiper Washer (FRONT, REAR)
When Front/Rear Washer switchs ON, Washer Motor Output Function
Wiper INT
According to Intermittent Volume input signal, Front Wiper Control Function
Rear Low
Rear Wiper Low Control Function
Rear INT
Rear INT Wiper Control Function
Warning
DRV SBR
Driver Seat Belt Reminder Warning Function
Key Operated Warning
When the key turns ACC ON and Driver Door Open, Warning Function
Parking Brake Warning
When the Parking brake switchs ON and vehicle drives, Warning Function
SMK System Warning
SMK Warning Function
Key Teaching Warning
When the RKE Teaching is completed, Warning Function
Door
CRASH
When vehicle crashes, All Door Unlock Control Function
Auto Door Lock/Unlock
According to USM setting, Door/Lock/Unlock Automatic Control Function
Out side Mirror
Out Side Mirror Folding / Unfolding Output Function

Components and Components Location
Components Connector Pin Information No.Connector A (24 pin)Connector B (20 pin)Connector C (26 pin)Connector D  (16 pin)1Battery (+)LIN (PAS)Washer motor power-2IGN 1Fuel filler (Charge do ...

Schematic Diagrams
Circuit Diagram ...
