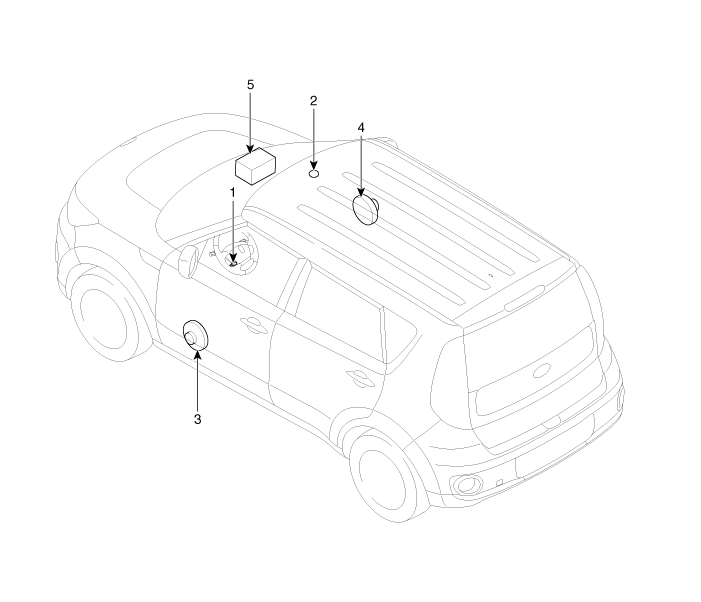

Components

1. Hands free call switch
2. Mic
3. Front left speaker
4. Front right speaker
5. AVN head unit (hands free control)

? There is no hands free jack. This system supports Bluetooth (wireless system).
