Kia Soul EV: Charge Door Opener Cover / Components and Components Location

Kia Soul EV (PS EV) 2015-2020 Service Manual / Body Electrical System / Charge Door Opener Cover / Components and Components Location

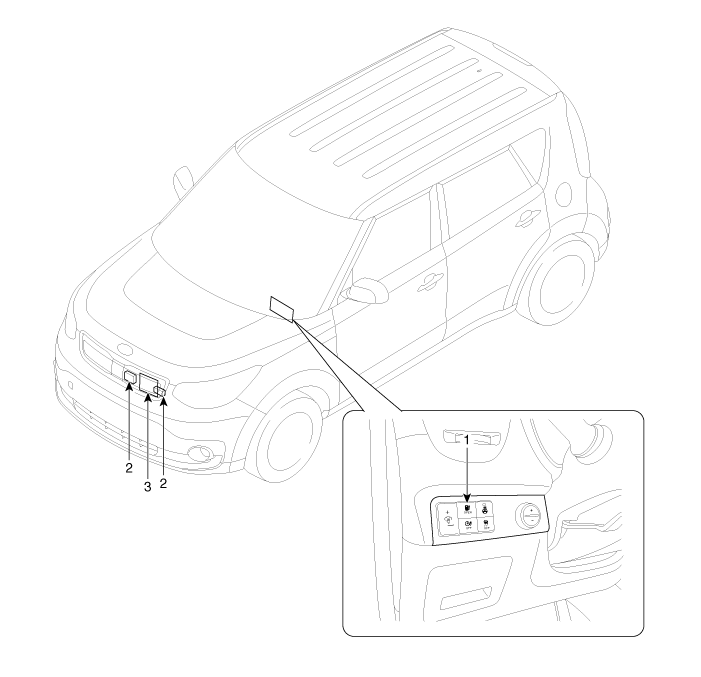

Components Location

1. Charge door opener actuator switch
2. Charge door opener actuator

3. Charge door opener cover

Charge Door Opener Cover

...

Charge Door Opener Actuator Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front bumper cover. (Refer to Body - "Front Bumper Cover") 3. Remove the charge door opener cover assembly. (Refer ...
