Component Location

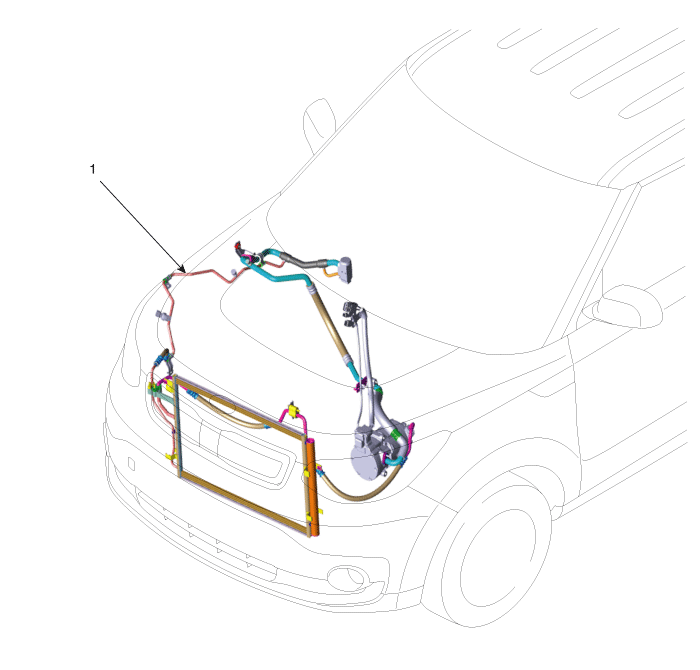

[Without Heat Pump]

1. Refrigerant line

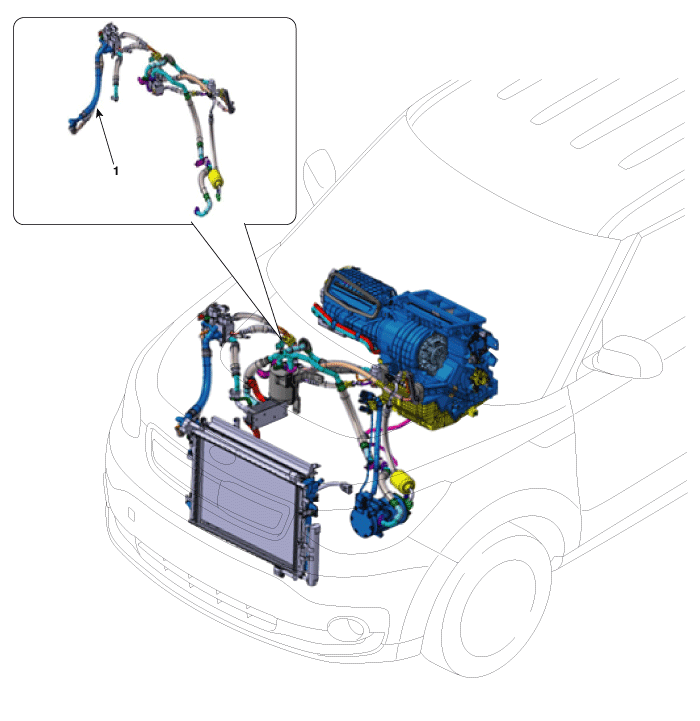

[With Heat Pump]

1. Refrigerant line

Compressor Oil Repair procedures
Oil Specification 1. The HFC-134a system requires synthetic compressor oil (POE) whereas the R-12 system requires mineral compressor oil. The two oils must never be mixed. 2. Compressor oi ...

Refrigerant line Repair procedures
Replacement 1. Discharge refrigerant from refrigeration system. 2. Replace faulty tube or hose.     • Cap the open fittings immediately to keep moisture or d ...
