Kia Soul EV: Mirror / Inside Rear View Mirror Components and Components Location

Kia Soul EV (PS EV) 2015-2020 Service Manual / Body (Interior and Exterior) / Mirror / Inside Rear View Mirror Components and Components Location

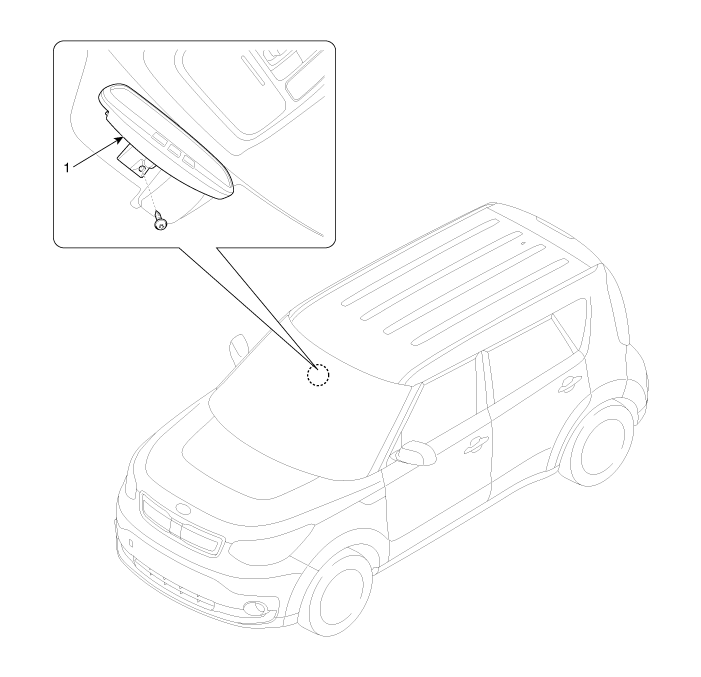

Component Location

1. Inside rear view mirror


Outside Rear View Mirror Repair procedures
Replacement     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver, wrap it with protec ...

Inside Rear View Mirror Repair procedures
Replacement     • Put on gloves to protect your hands. 1. Remove the ECM mirror cover (A). 2. Disconnect the ECM mirror connector (B). 3. Loosen the ...

Other information:

Kia Soul EV (PS EV) 2015-2020 Service Manual: Components and Components Location


Components Connector Pin Information No.Connector A (24 pin)Connector B (20 pin)Connector C (26 pin)Connector D  (16 pin)1Battery (+)LIN (PAS)Washer motor power-2IGN 1Fuel filler (Charge door) actuator relayFront washer motor-3IGN 2LS CAN high--4Brake switchLS CAN lowMirror unfold relayMi ...

Kia Soul EV (PS EV) 2015-2020 Service Manual: Rear Door Latch Repair procedures


Replacement 1. Remove the rear door module. (Refer to Rear Door - "Rear Door Module") 2. Remove the rear door outside handle base (A) by pushing in the lock pins located in the back. 3. Remove the rear door outside handle cable (A). 4. Disconnect the rear door latch connector (A). ...
