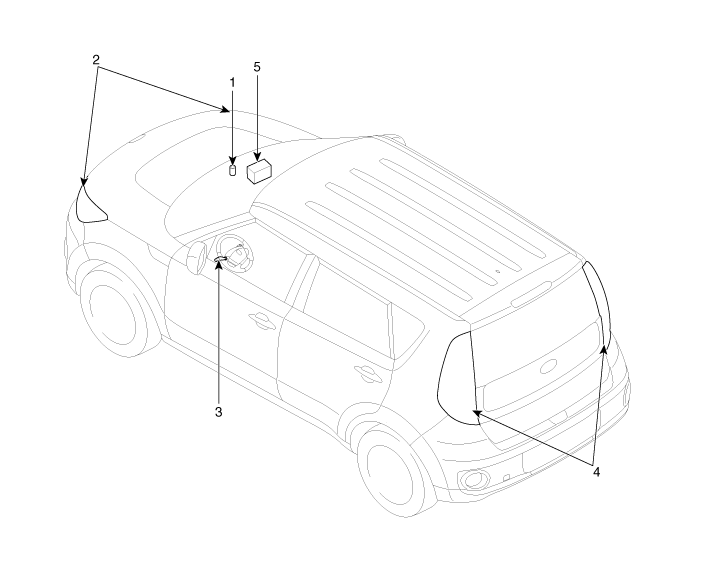

Component Location

1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)
4. Tail lamps
5. BCM (Body Control Module)

Specifications
Specifications ItemsSpecificationsRated voltageDC 5VLoadMax. 1.5mA (When head lamp lighting)Illuminations (LUX)1001.89 ± 0.42(V)2003.55 ± 0.78(V) ...

Schematic Diagrams
Circuit Diagram ...
